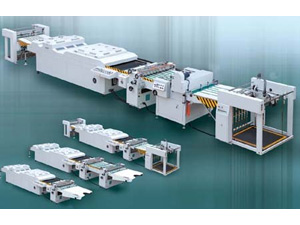

Full Coating Machine

Full Coating Machine

Description:
These full coating machines are very useful for various surfaces, paper, board, plastic profiles, wood, bamboos, metal or glass. With UV oil-passing polishing dual function, full coating machine is still used for fabricating pictures, especially for thin-paper coating. The main advantage of this UV roller coater is uniform coating and noiseless. The type of full coating machines produced in our company includes QSGC 720, QSGC 1000, and QSGC1200.

Features:
1. The end of full coating machine features waterproof, wear-resistant and scratchproof.
2. UV roller coater features easy operated, widely used, low cost, and high efficiency.
3. The speed of the machine is adjustable
4. UV roller coater can be Applicable for coating laser printing pictures, ink printing pictures, paper with adhesive on the back, etc. The coated paper can resist water, damp, aging and ultraviolet ray.

Why choose us?

Specification of Full Coating Machine:

Model 1200 1000 720
Max. width 910×1140 mm 910×1000 mm 650×546 mm
Min. width 406×340 mm
Fit paper 80-600 g/m2
The max. paper feeding speed 5000 P/hour
The max. paper feeding speed 3000 P/ hour(200g)
Max. work speed of full coating machines 60 m/min
Overall dimension (L×W×H) 13.51.9×1.6 mm 13.5×1.7×1.6 mm 13.5×1.5×1.6 mm
Overall weight 5000 kg 4800 kg 4500 kg
Total power 17 kW
Infrared 18 kW
Ultraviolet 24 kW

As a professional supplier of full coating machines in CHINA, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of paper processing, printing and packaging machinery for customers, such as paper cutter (A4 copy paper cutter wrapper/A4 paper cutting packaging machine), can printing machine (metal plate printing machine), flexographic press, hot foil stamping machine, die cutting, folder gluer, etc. With high quality assurance, our full coating machine are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few.
