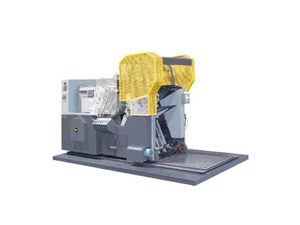

Foil Stamping Embossing & Die Cutting Press

Foil Stamping Embossing & Die Cutting Press

Description:
Equipped with feeder, controller, this automatic foil stamping and die cutter can finish several steps together, such as hot stamping, embossing, and die cutting, pressing convex and creasing. This foil stamping embossing & die cutting press can achieve any desired look for all your printed material.

Printing Processes of Foil Stamping Embossing & Die Cutting Press:
1. Foil stamping is a commercial print process of this foil stamping embossing & die cutting press. Foil stamping can be combined with embossing to create a more striking 3D image.
2. Embossing is also the important part during the work of automatic foil stamping, embossing and die-cutting machine. This part can be finished on the application of heat and pressure
3. Die cutting can give printing more creativity and impact. This manufacturing process can generate many same shapes from wood, plastic, metal, or fabric. This process is widely used on an assortment of materials all over the world.

Why choose us?

Main Specification of Foil Stamping Embossing & Die Cutting Press:

Max. sheet size 780×560 mm
Min. sheet size 280×220 mm
Max. feeding pile height 800 mm
Max. delivery pile height 160 mm
Max. working pressure 110×4 N
Rated power 12 kW
Air pump displacement 40
Cardboard range 100-2000 gsm
Max. mechanical speed 1500 s/h (≤150gsm) 2500 s/h(>150gsm)
Machine weight 4300 kg
Machine noise ≤81Db
Heating plate power 8 kW
Overall dimension (L×W×H) 2700×1820×2020 mm

As a professional supplier of foil stamping embossing & die cutting press in CHINA, Lantytk® Corp has continually focused on providing a wide variety of paper processing, printing and packaging machinery for customers, such as paper cutter (A4 copy paper cutter wrapper/A4 paper cutting packaging machine), can printing machine (metal plate printing machine), flexographic press, hot foil stamping machine, die cutting, folder gluer, etc. With high quality assurance, our automatic foil stamping and die cutter are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few.
