LYRDT-930 Flexo Wire Side Stitching Line

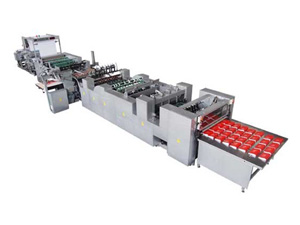

LYRDT-930 Flexo Wire Side-Stitching Line

Description:
This LYRDT-930 flexo wire side stitching line (exercise book production line) is a kind of machine to process paper books in binding and finishing, by means of joining pages together by driving thin metal wire (i.e., staples) through the cover of a publication along the binding edge. This machine made in our company is developed based on the flexo ruling machine series, as well as absorbing advanced technology from foreign machines. It is especially suitablew for producing wire side stitching exercise book, note book.
We adopt advanced parts for the machine, to ensure great performance. Take one of the key part, electrical control system, as example, we use the most advanced Fieldbus Control System and Non-axle servo control system, which in turns leading to harmonious working for each part of the machine.
Working flow of this machine is that, releasing the web, flexo printing (double side), sheeting, counting and stratifying, auto covering, wire stitching, folding, back planning, cross cutting, and completing the finished product.

Structure and Feature:
1. Reel-releasing:
Max reel diameter: 1300mm
Paper core inside diameter: 76mm (3 inch air expanding shaft)
Reel width: 580-930mm
2. Printing Process: 2+2 type (2 sides double colors printer)
Printing-cutting length: 300-670mm (change rate 5mm)
Max printing width: 930mm
Printing speed: 30-250m/min
3. Sheeting: size 250-450mm
4. Counting: 5-50sheet/tier
Max speed: 45 tiers/min
5. Covering: cover paper 55g/m2~300g/m2
6. Stitching: stitching with 8 heads
German Hohner 43/6 standard stitching head max thickness 6mm
7. Speed: Folding, back planning, and trim front side:  speed and size is adjustable.
8. Book cutting:
Type 1 cross cut knife+1 spare knife
Type 5 set knives +2 spare knives
Can be cut into 4 books
9. Delivery: constant speed comply with main motor

Why choose us? Main Specification of LYRDT-930 Flexo Wire Side-Stitching Line:
Printing width 580~930 mm
Printing speed 30-250 m/min
Rotative printing-perimeter 300-670 mm
Sheeting  length 250-450
Counting and collecting 6-50 sheets
Max. output (exercise book cutting) 40 times /min
Total Power 30 kw
Weight 15000 kg
Overall dimensions (L x W x H) 16000x3500x2200 mm

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of paper bag making machine, paper coating machine, laminating machine, flexographic printer, paper processing, printing and packaging machinery for customers around the world. We are very familiar with international market of paper bag making machine, hot foil stamping machine, flexographic printer, printing machine, paper processing, printing and packaging and its trend of development. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.
