Folder Gluer

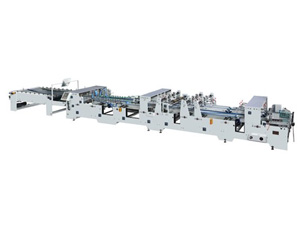

Folder Gluer

Introduction:
This ZH series folder gluer (box folding gluing machine) can be 2-folding, 4-foiding with bottom gluing. It can be changed by 180 degree or 90 degree for the first fold in the per-folding part, while in the second and fourth folding part, it can be molded in 180 degree. We can increase the pre-folding of 180 angree-135 angered; the special design is also available
It is a kind of digital machine, with touch screen, PLC controller, photoelectric counting, and automatic sheet kicker.

Features:
1. Strengthened single-side driving system adopted for steady running and easy maintenance.
2. Frequency conversion controller adopted for the motor leading to automatic timing and power saving.
3. The machine can work continuous, exact and automatic feeding, for the adoption double face tooth rod adjusting in operation with shaking motor and several thick belts with shaking motor for delivery.
4. The grinding equipment makes glue more stable, firm and fine glued.
5. Japanese (NIAT) belts equipped.
6. This ZH folder gluer (box folding gluing machine) is suitable for unilateral paper box.
7. The 4-folding function is easy to open the paper and it adapts to automated packing product line. 8. The pressing part is adopted the universal strain equipment, which make the surface to molded box more flat and regular, without indentation mark.

Type:
ZH-1600BFT, ZH-880BFT, ZH-880PFT

Why choose us?
1. ZH-1600BFT Folder Gluer (Box Folding Gluing Machine)
Straight line  (mm) Crash-Lock bottom box  (mm) Double size(mm)
A  MAX 1380 A  MAX 1300 A  MAX 1380
A  MIN 160 A  MIN 260 B  MAX 1250
B  MAX 850 B  MAX 1250 C  MAX 20
B  MIN 200 C  MIN 150
    D  MIN 50
    E  MIN 125
    F  MIN 50
Main Specification
Max Speed 200 m/min
Required Power 17.2kw
Dimension (L×W×H) 13×1.6×1.8m
Gross Weight 7 T
2. ZH-880BFT Folder Gluer (Box Folding Gluing Machine)
Straight line  (mm) Crash-Lockbotombox(mm) Double size(mm)
A  MAX 580 A  MAX 580 A  MAX 580
A  MIN 80 A  MIN 180 B  MAX 500
B  MAX 580 B  MAX 580 C  MAX 20
B  MIN 120 C  MIN 90
    D  MIN 30
    E  MIN 85
    F  MIN 30
Main Specification
Max Speed  180 m/min
Required Power 6.7 kw
Dimension (L×W×H) 9×1.1×1.4 m
Gross Weight 3.5 T
3. ZH-880PFT Folder Gluer (Box Folding Gluing Machine)
Main Specification:
Max Paper 580 mm
Min Paper 150/90 mm
Max Finished Product 285 mm
Min  Finished Product 70/40 mm
The Longest 600 mm
The Shortest 100 mm
Motor Power 3.2 kw
Contcur Dimension(L×W×H) 7300X1060X1300 mm
Minute 0-180 m
4. HZH Series Folder Gluer (Box Folding Gluing Machine)

Introduction
This HZH folder gluer (box folding gluing machine) machine is used to fold and glue boxes after die-cutting. This machine is wildly used in paper box manufacturing.
This machine can also finishing the whole process of automatic feeding, side gluing, folding, delivering, pressing and counting. Both straight paperboard (straight-line box) and corrugated board (2 and 4 fold bottom locked box) in 250~600g are suitable.

Feature:
1. It is equipped with three sets of pre-folder, which can pre-fold first and third line.
2. For the feeder, it is equipped with vibrator to make it feeding smoothly.
3. There is imported A/C frequency converter makes the machine durable and convenient.
3. Two side gluing. Additional spring pressing device bring more pressure when folding E type corrugated board.
4. In the meanwhile, there is imported sensor, coder and counter to ensure the precision of box counting.
5. We use isochronous controller keep the adjusting of main machine speed and pressing speed.

Specification
Model HZH650 HZH850 HZH1050 HZH1380 HZH1450
Paper Type Paperboard 250~600g Paperboard 250~600g E type corrugated board
Max. Mechanical Speed 240m/min 200m/min 200m/min 200m/min 200m/min
Glue Type Water based Water based Water based Water based Water based
Power Standard 3Phs 380V 50Hz 3Phs 380V 50Hz 3Phs 380V 50Hz 3Phs 380V 50Hz 3Phs 380V 50Hz
Main Motor Power 7.5Kw 7.5Kw 11Kw 11Kw 11Kw
Total Power 9.36Kw 10.6Kw 14.1Kw 14.1Kw 14.1Kw
Over All Dimension 11×1.3×1.7m 11×1.3×1.7m 14×1.3×1.9m 14×1.3×1.9m 14×1.3×2.1m

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of folder gluer, laminating machine, paper coating machine, case maker for customers around the world. We are very familiar with international market of paper processing, printing and packaging and its trend of development. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.
