Handbag Making Machine (Handbag Production Line)

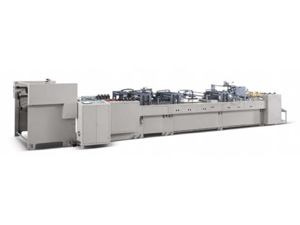

Handbag Making Machine

Description:

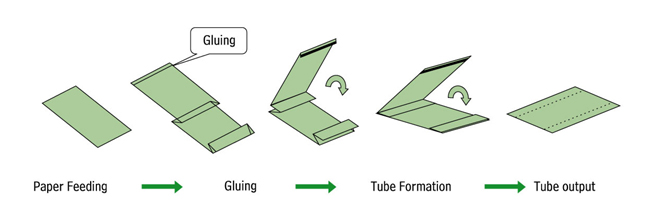

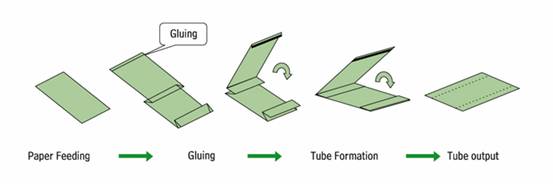

This ZB series handbag making machine (handbag production line) is mainly used for producing deluxe paper bags from various special papers, such as varnish paper, laminated paper, etc. The whole process of paper feeding, gluing, tube forming (pressing) and outputting is finished automatically. The sheet-feed bag tube forming machine can automatically finish the bag tube forming which in turns improving efficiency significantly.
The sheet paper can glue with water soluble adhesive, and hot melt glue sparer system is optional.

Type:
ZB950B, ZB1100A, ZB1100B

Founded in 2009, Lantytk® Corp has continually focused on providing a wide variety of woven bag production line (fabric bag making machine) for customers around the world. We are very familiar with international market of laminating machine, paper coating machine, case maker and its trend of development. With high quality assurance, our products are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.

Why choose us? Main specification:
Max sheet size(L×W) 920×550mm
Min sheet size(L×W) 500×300mm
Sheet range 100-350gsm
Paper tube height 55-180mm
Speed 100bags/min
Glue type Water-soluble cold glue
Power 10KW
Overall dimension(L×W×H) 9500×1830×1650mm
Gross weight 3500kgs
ZB1100A Handbag Making Machine
Main specification:
Max sheet size(L×W) 1020×600mm
Min sheet size(L×W) 600×380mm
Sheet range 150-350gsm(Art paper.180-300gsm)
Paper tube height 60-180mm
Speed 70pieces/min
Glue type Hot melt glue
Power 6.5KW
Overall dimension(L×W×H) 7500×2200×1500mm
Gross weight 2000kgs

ZB1100B Handbag Making Machine
The pre-load feeder realizes non-stop operation, which significantly saves labor cost and improves production efficiency.

Main specification:
Max sheet size(L×W) 1020×600mm
Min sheet size(L×W) 500×320mm
Sheet range 100-350gsm
Paper tube height 55-180mm
Speed 100pieces/min
Glue type Water-soluble cold glue
Power 10KW
Overall dimension(L×W×H) 9000×1830×1650mm
Gross weight 4000kgs
