Paper Bag Making Machine

Paper Bag Making Machine

Description:

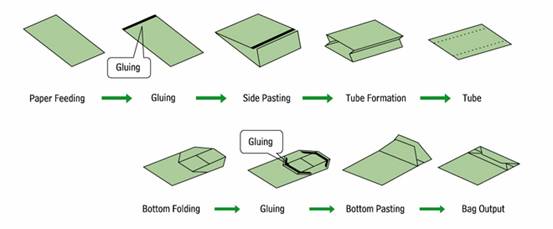

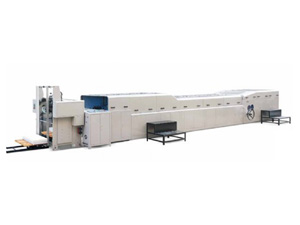

This ZB960C sheet feed paper bag making machine (paper bag production line) is a kind of newly developed automatic paper bag maker for various types of paper bags. The processing flow is that, sheet feeding, gluing, side pasting, tube forming, tube, bottom folding, gluing, bottom pasting, and bag out. This pre-load feeder can lead to non-stop operation. There is PLC controller and touch screen facilitates for operation. This machine is proven to meet international standards, which significantly saves labor cost and improves production efficiency.

Process of Paper Bag Making Machine (Paper Bag Production Line):
1. It is a kind of sheet feeding machine, paper can automatically transferred along bridge.
2. Before the paper goes to be lengthwise creased, it is positioned by front and side laid guides.
3. The following process is, automatically gluing with water-soluble adhesive (optional hot melt glue sprayer system), tube forming, pressing.
4. Then the paper tuber will be positioned by pusher and be widthwise creased.
5. Finally after bottom turning, gluing, bottom forming, the finished bag is delivered out.

Why choose us? Main Specification of Paper Bag Making Machine (Paper Bag Production Line):
Max sheet size (L×W) 920×550mm
Min sheet size(L×W) 500×320mm
Sheet range 100-210gsm
Bag width 180-330mm
Bag bottom width 80-150mm
Bag length 280-490mm
Speed 50-70bags/min
Glue type Water-soluble cold glue
Power 14KW
Overall dimension(L×W×H) 14000×1700×1900mm
Gross weight 10000Kgs

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of rigid box maker (rigid box production line), paper cutter, flexographic printer, flexo die cutter for customers around the world. We are very familiar with international market of case maker, laminating machine, flexographic printer and its trend of development. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.
