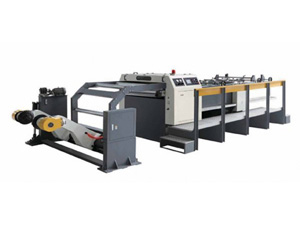

Folio Sheeting Machine

Folio Sheeting Machine

Description:
These folio sheeting machines are designed to handle all commercial types of paper and board, as well as many other sensitive materials. This folio size paper sheeting machine can cut the paper roll into paper sheets.

Features:
1. Driven by AC servo motors, the high cutting speed of this folio sheeter reaches 300 cuts /min.
2. Folio sheeting machines can cut 8 paper rolls at one time.
3. Automatic deflection rectifies and antistatic device is also an advantage of this folio size paper sheeting machine.
4. Due to human and machine interface system, the operation of folio sheeting machine is easy and safe.
5. The folio sheeting machine produced in our company features flexibility, efficiency, productivity and consistent performance. This paper converting equipment can be used for fine paper or board.

Why choose us?

Specification of Folio Sheeting Machine (Paper Converting Equipment):

Indices CK-1400 CK-1450 CK-1700 CK-1900 CK-1900A
Cutting Method The up knife cut reciprocally and the down knife is fixed
Cutting Length Range 450~1450 mm
Thickness of Cutting Paper 60-550 gsm
Paper Piling Height Max 1200 mm (65"), Max 1300mm (65"), Max 1650 mm (65") (Optional)
Cutting Precision The cutting length 1000 mm ±0.3 mm or 1000 mm ± 0.5mm (Optional)
Max. Cutting Speed 160 sheets/min or 90 m/min, 250 sheets/min or 250 m/min, 300 sheets/min or 300 m/min, 350 sheets/min or 350 m/min (Optional)
Gross Weight 6000 kg, 7000 kg, 8000 kg, 11,000kgs, 13,000kgs, 15,000kgs, 17,000kgs
Max. Scroll Diameter 1400 mm (55"), 1700 mm (67"), 1900 mm (75")

As a professional supplier of folio sheeting machine (paper converting equipment) in CHINA, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of paper processing, printing and packaging machinery for customers, such as paper cutter (A4 copy paper cutter wrapper/A4 paper cutting packaging machine), offset printer, flexographic press, hot foil stamping machine, die cutting, folder gluer, etc. With high quality assurance, our products are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few.
