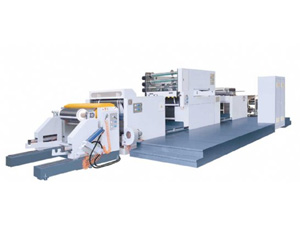

Automatic Web Fed Foil Stamping Machine

Description;
This TYM1050JT series automatic web-fed foil stamping machine is a kind of newly designed hot stamping equipment mainly used for production of carton, paper cup, surround-bidding label, card paper pressing convex, portable paper bag, paper cover, PVC, and various plastic material , to name a few. It has advantages of easy length adjustment, high precision positioning, stable feeding, even tension, compact structure, high automation, easy operation, stable performance and so on.

Feature:
1. Adopt advanced resin sand technical for the main machine frame, which ensures machine be more stable.
2. Using Japan Mitsubishi PLC to control the main components.
3. The main motor is controlled by AC frequency change speed regulator
4. For the main transmission system, it is equipped by air clutch brake system, which makes the machine running steadily.
5. Adopt the high precision color optical, and auto trace detection, along with servo motor automatic registering system Material can be automatic load, automatic register during transmission.

Why choose us? Main Specification of TYM1050JT Automatic Web Fed Foil Stamping Machine:
Max paper roll diameter 1200 mm
Max feeding paper length 750 mm
Max working area 1050×750 mm
Max stamping speed 5000 cycle/min
Max mechanical speed 6000 cycle/min
Foil feeding shafts 3 sets
Zones individually heating 10 (3 kw/zone)
Main motor power 15 kw
Heating plate power 30 kw
Paper range 150-1000 gsm
Max working pressure 250 T
Machine weight 18 T
Overall dimension (L×W×H) 13000×4000×2200 mm

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of case maker, paper bag making machine, rigid box maker (rigid box production line), for customers around the world. We are very familiar with international market of paper processing, printing and packaging and its trend of development. With high quality assurance, our products are popular in markets including Ukraine, Russia period, Chile, Brazil, Argentina, Mexico, Malawi, Pakistan, South Africa, to name a few. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.
