Hydraulic Paper Cutter

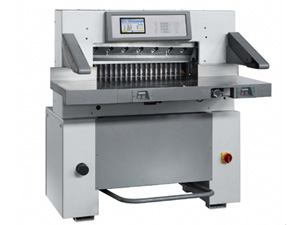

67ET Hydraulic Paper Cutter

Description:
This hydraulic paper cutter (numerical paper cutting machine) is a kind of high-end office paper processing equipment with liquid crystal display and microcomputer controlled.
This machine uses full hydraulic drive which can make the machine safer. The cut knife and press paper machine is controlled by hydraulic pressure tank transmission. In the mean while, the hydraulic components, Japan, Korea electric components, imported bearing ensure the system stability.
Regarding the programmable ability, the hydraulic paper cutter (numerical paper cutting machine) adopts digital inches colorful display screen with the resolution rate 0.01㎜. If there is problem during the operation, the machinery can be self-diagnostic and displays the trouble automatically. It is with 100program units over the 20000 different cutting positions, dynamic follow-up.
The hydraulic and programmable character ensures the high quality cutting and control ability. The machine can process with max paper-pushing 5-10m/min, cutting speed 20r/min, max paper pressure 20000N.

Structure and Advantage:
1. Input voltage: adopting single-phase 220V that can enlarge installation range.
2. The cut knife and press paper of the paper cutting machine is hydraulic pressure tank transmission controlled.
3. Hydraulic drive: The equipment is equipped with full hydraulic drive which can make machine safer and the hydraulic components, Japan, Korea electric components, imported bearing of low maintenance ensure the system stability.
4. Self-diagnostic and IR photoelectric protection.
5. The hydraulic paper cutter (numerical paper cutting machine) uses inches colorful display screen with resolution rate 0.01㎜, that displays the operating pattern and it is with self-diagnostic ability.
6. Programmable: there are 100program units, over the 20000 different cutting positions, dynamic follow-up.
7. Well set and save digital function, button by two hands safety devices; precise guide of paper impeller, aiming at back paper stopper with high angle precision.
8. Max paper-pushing is 5-10m/min.

Why choose us? Parameter of 67ET Hydraulic Paper Cutter:
Cutting width 67㎝
Max. cutting height without assistance pressing plate 20㎝
Max. cutting depth 170㎝
Min. cutting height without assistance pressing plate 5㎝
Extended length of working table 53㎝
Height of working table 88.2㎝
Machine width including side working table 125㎝
Total length of working table 150㎝
Cutting speed 20r/min
Max. paper pressure 20000N
Power of main motor 1.5Kw
Motor for paper feeding 0.37Kw
Air pump 0.25Kw
Machine weight 650Kg
Overall dimension (L×W×H) 173×145×165㎝
Blade specification (L×W×H) 78×10.3×1.0㎝

Founded in 2009, Shanghai Pripack Machinery Co., Ltd. has continually focused on providing a wide variety of hydraulic paper cutter (numerical paper cutting machine), paper processing, printing and packaging machinery for customers around the world. We are very familiar with international market of laminating machine, hot foil stamping machine, printing machine, paper coating machine and its trend of development. With products of high quality assurance and CE certificated, we are sure to provide our customers with the best products at competitive price.
